Product of the Week- The new T25 Deck Organiser

by Sail-World Cruising on 23 Nov 2012 The 22nd annual DAME awards for marine design have announced the company Spinlock as winners in the deck equipment, sails and rigging category. The winning design was for boats under 28 feet, and with superyachts getting so much design attention these days it's nice to see some attention paid to smaller boats.

Their T25 Organiser was designed for the smaller boat deck, a multiple-line organiser which is micro-sized for smallest weight, windage, and deck footprint.

The DAME jury were impressed with the smart design, as well as its space saving and cost reduction qualities.

Spinlock’s Design and Development Director, Chris Hill, commented: 'The new T25 Organiser is a perfect fit for the OEM boat builder and developing innovative deck layouts. The award is a fantastic achievement for the whole Spinlock team and for delivering another category winner.'

Their unique modular design uses a kit of fine-detail, composite mouldings - halving the number of different parts required to produce all multiples from 2 to 6 x 25mm sheaves. Subtle stainless steel details add local stiffness and prevents line abrasion.

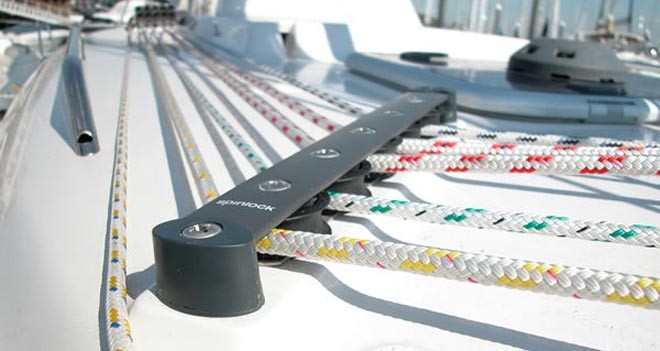

Like Spinlock’s larger T38 and T50 organisers (pictured above), the T25 is designed to cope where more lines are needed within the same footprint. Uniquely, the T25 integrates the new BE10/2 or BE10/3 multiple bullseye on top to guide the lighter loaded lines.

New low profile double and triple bullseyes leads (BE10/2 and BE10/3) either stack on top of the T25 to group extra lines within the same footprint or can be mounted directly on deck using M5 fasteners.

Technical details:
Sheave Diameter/Type: 25mm composite
SWL per sheave: 400kg
Total SWL per unit: No. of sheaves x 200kg
Line Diameter: Up to 10mm
Fasteners: M5 CSK


For more information go to the www.spinlock.co.uk!Spinlock_website
