Colligo Marine Spinnaker Furler

by Colligo Marine 5 Mar 2023 08:30 AEDT
Colligo Marine LLC © Colligo Marine




COLLIGO MARINE

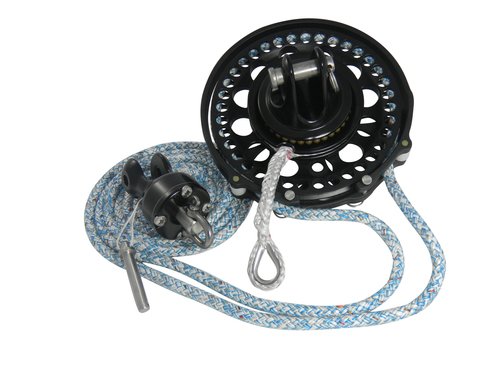

SPINNAKER FURLERS

Colligo Marine top down style furlers are made for furling curved luff asymmetrical spinnaker sails. Our Top Down style Spinnaker Furlers use a torsionally stiff Torque Rope to transmit torque up from the lower drive end of the furler to the head of the sail, which allows the sail to be furled from the top down. The tack of the sail is allowed to spin independently of the torque rope ensuring that the sail will not get twisted on the torque rope

For sail deployment just pull on one of the sheets and the sail will unfurl and fill with wind.
Want to see for yourself? Take a look HERE.



SPINNAKER FURLER SIZING

  • For sails to 700 Sq ft use the CF1.5

  • For sails to 1000 Sq ft use the CN3S

  • For sails to 2,000 Sq ft use the CN5S

 Sizing also depends on sail type and weight, predicted usage and boat geometry.



TORQUE ROPE

Spinnaker Furlers are only as good as the torque rope they use. Colligo Marine has one of the best Torque Ropes on the market. Our Torque Ropes are custom luff lines for code zero style sails and torque lines for top down furled spinnakers.

We have a custom line made for us using Colligo Dux as the core and a proprietary cover that simply gives the best combination of low stretch and torque transmission of any line on the market. We have our own furler line terminators (furlinators) and special clamps made just for torque lines that can be removed for resetting the length if you don't get it right the first time (not that it ever happens, just sayin..).

Contact us here with any inquiries you may have.
