Swan 88 - a pure cruiser, with a racer soul

by Nautor's Swan 2 Oct 2022 02:34 PDT

Sitting at the entry point to the world of maxi yachting, the design of the Swan 88 is based on an evolution of the brand's previous popular yachts but with the addition of various innovative features never before seen on a Swan.

The yacht is a beauty, with a distinctly feminine elegance to her lines while delivering a superyacht experience ona platform that is both efficient and easy to maintain.

A deck for living as well as racing

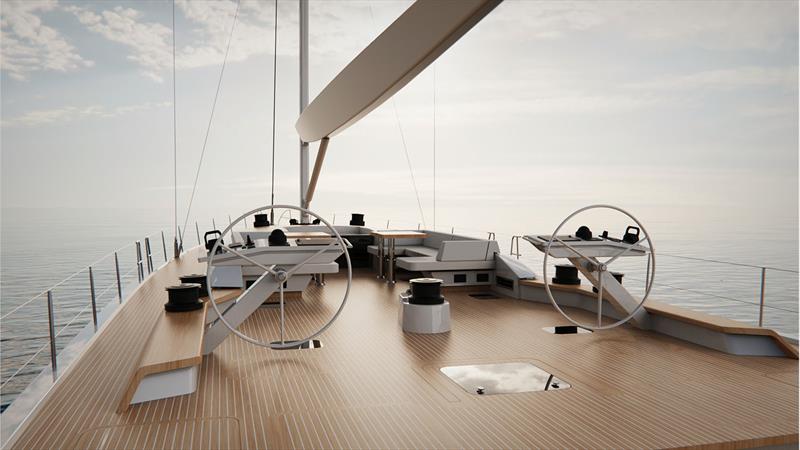

As on every Swan, the heart of the yacht is its deck, which on the Swan 88 can be separated into four defined areas, the first three located in the cockpit/aft while the fourth is found in the fore section. In the guest cockpit, Swan has introduced a newly evolved coachroof design on the 88 that takes inspiration from previous generations of maxi yachts, bringing together the practicality of an integrated sprayhood and bimini, with a very elegant line.

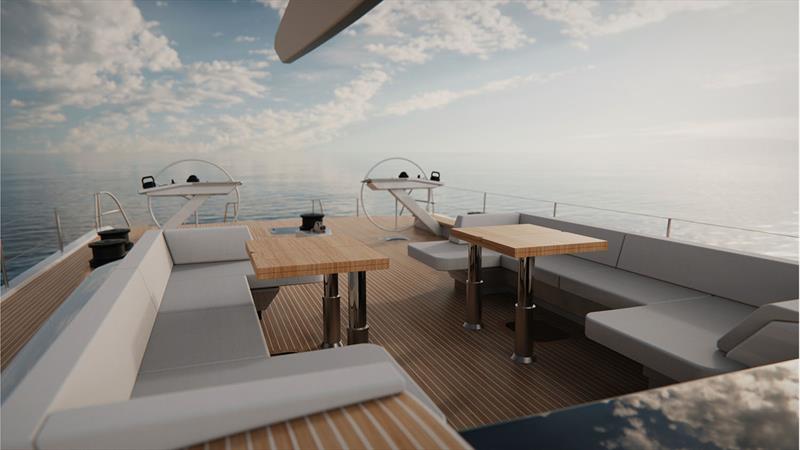

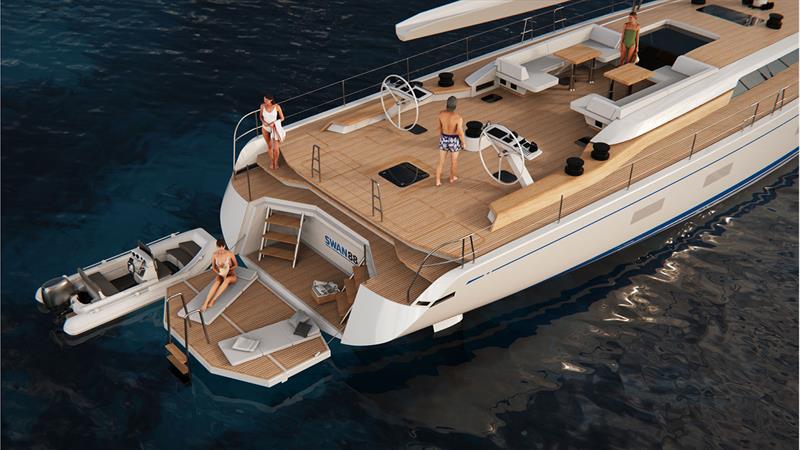

The cockpit's modular benches can be arranged in a number of different configurations, such as lounging and full dining set-ups. The maneuvering area with the yacht's winches and steering pedestals is centrally positioned in this area, to allow space at the stern for a completely new beach area where guests can recline or lie down, with access to the water as well as the large tender garage. Forward of the mast, there is a fourth area which can be used for sunbathing or as a sunset lounge, with a large sail locker and anchor locker below the deck.

Efficient performance and design

As with all the brand's models, the Swan 88 is a purebred performance yacht; it is a nocompromise cruiser, with a racer soul. The Swan 88's appendages are optimized for cruising, with a standard moderate draft of 4m and options for shallow-draft, telescopic and performance keels. The twin rudders convey multiple advantages including a shallower draft and improved balance while sailing.

"The New Model is an evolution of the previous models, but for this one we've done a complete study for the balance, the performance, the position of the rig and the shape of the sails" says German Frers. "According to the results of these studies, we designed the hull".

A veritable blue water yacht, the Swan 88 is designed to provide a soft, comfortable ride even in rougher conditions, with an optimized heeling angle of no more than 20 degrees.

With an effective load line length of less than 24m, it is economical to run and manage, while also providing wide appeal on the charter market and upholding a high resale value.

"The Swan 88 has been conceived to be the entry size to the Swan Maxi World, compliant to the MCA rules.

Our decision to do so has come from the fact that we wanted to build a Superyacht with an efficient platform, in terms of management costs, easiness to get the charters certifications," says Giovanni Pomati. "This project sees the collaboration with Lucio Micheletti, teaming up for the exterior design, for anew concept which will be followed by bigger sisters".

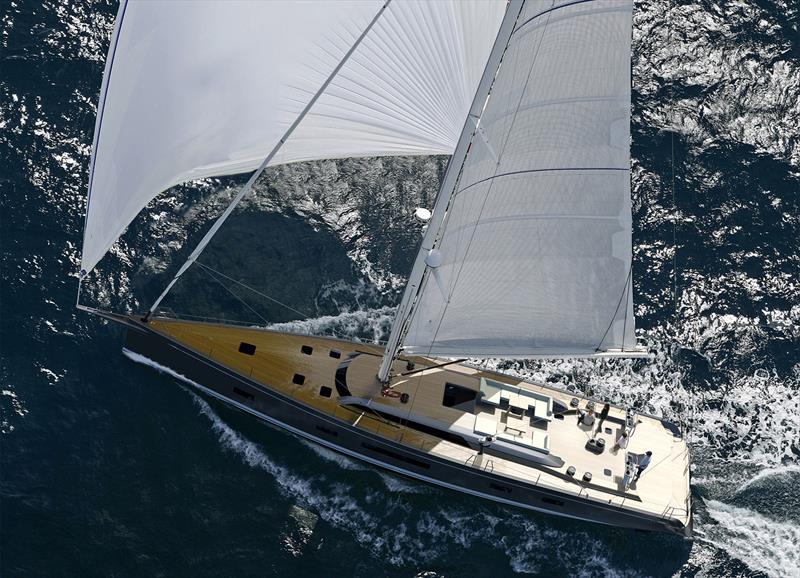

The Swan 88's sail plan takes advantage of the brand's wide experience from recent ocean races, bringing together efficiency and uncomplicated, easily managed sailing. The mast well's location in the middle of the yacht provides a good balance between the foretriangle and the main sail, with the opportunity to fraction the triangle in four different stays - gennaker, code zero, jib and staysail - thanks to the long J measure. The staysail can be provided with a self-tacking track, and the mast and boom are constructed in carbon as standard.

"As all the Swans also this model will be a protagonist in the Maxi Yachts Regattas panorama" adds Pomati.

Comfort on board

"When you walk onto a boat, you should walk into a very comfortable, harmonious and magical place. This magic comes from the balance created between volume, geometries, architecture and materials." Misa Poggi - Interiors Designer.

Designed with guest and crew comfort on extended trips in mind, a range of layout arrangements and mood concepts Is available to customize the yacht's interior and style to an owner's tastes. The standard interior is the typical owner-forward layout, with four ensuite guest cabins and a dedicated area for up to four crew.

The interior has a number of features to increase the sense of Space onboard, including generous windows in the hull and coachroof. One of the most remarkable design innovations of the interior is the substantial transparent stairway leading from the cockpit to the salon, with a further two stairways leading down to the accommodation level aft, creating a spectacular entrance. The owner's cabin is spacious and comfortable with a large ensuite, while further aft the guest VIP cabin can be optionally converted into a TV lounge, and the two twin guest cabins with optional pullman berths. The aft section is separated into two separate areas; the first is a half-crew, halfguest area, with a big galley and a second dinette, which can be used as crew mess, but also for guests' breakfasts, or as a comfortable place where children can stay protected while sailing. And further aft, there is a dedicated crew area accessed via the cockpit, with two twin bunk cabins, separate showers, and space for appliances.

"Working on this project has been really inspiring for us, we reckon it would be a contemporary classic and a very best seller in the Swan history" concludes Vanni Galgani, Product Line Leader.

Technical specifications:

  • Length Hull: 26.54 m - 87.1 ft
  • Load Line Length: 23.99 m
  • Length Over All: 28.27 m
  • Length Water Line: 24.99 m
  • Beam max: 6.72 m
  • Draft std: 4 m
  • Draft shallow: 3.60 m
  • Draft telescopic: 3 - 4.60 m
  • Height above dwil: 40.53 m
  • Displacement: 54.100 kg
  • Ballast: 15.050 kg
  • Fuel tanks: 2.8 l
  • Water tanks: 1.5 l
  • Sail area tot: 437.39 sqm
  • Main sail: 235.51 sqm
  • Jib Orc: 201.88 sqm
  • Gennaker: 690 sqm
  • IG: 35.65 m
  • ISP: 38.30 m
  • J: 10.60 m
  • P:35 m
  • E: 11 m
  • TPS: 13 m
